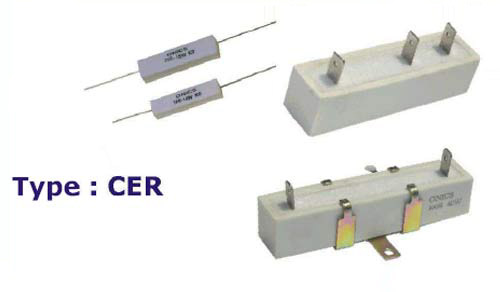

Ceramic Encased Wire Wound Resistor
Technological excellence, sophisticated
manufacturing process & expert technocrats enable us to manufacture
premium quality resistors. All our resistors are quality certified and
exhibit optimum performance.
Features
- Economical Fire-Proof Case
- Completely Welded Construction
- High Resistance Values Available.
- Non-Inductive type Available.
|
CONSTRUCTIONS
These resistors are made by winding resistive wire on
fibre glass cord or ceramic rods. Terminals are crimped or welded to end
caps. This resistors assembly is then encapsulated in ceramic boat with high
Temperature and fire retardant cement
SPECIFICATION
| Ohmic Range |
0.01W - 50K |
| Tolerance |
± 10% Lower Tol. available |
| Power Ratings |
2-40 Watts |
| Temp. Co-eff. |
50 PPM/100 PPM/ 260 PPM |
| Dielectric Voltage |
2500 V |
| Operating Temp |
250°C Max |

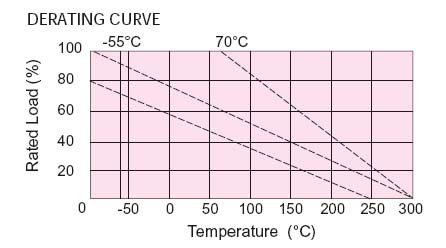

| Derate to Zero at |
250°C |
| Rating at 70 °C Watts |
Dimensions in mm |
Resistance Range |
| L |
D |
d |
l |
| 2W |
18 |
7 |
0.8 |
35.0 |
1W-2K |
| 3W |
22 |
8 |
0.8 |
35.0 |
1W-3K |
| 5W |
22 |
10 |
0.8 |
35.0 |
0.01W-10K |
| 7W |
35 |
10 |
0.8 |
35.0 |
0.01W-20K |
| 10W
|
48 |
10 |
0.8 |
35.0 |
0.01W-30K |
| 15W |
60 |
12 |
0.8 |
35.0 |
0.01W-40K |
| 20W
|
60 |
14 |
0.8 |
35.0 |
0.01W-50K |
| 30W |
76 |
19 |
Clip Terminals |
- |
0.01W-60K |
| 40W
|
90 |
19 |
Clip Terminals |
- |
0.1W-70K |
|
Note : Mounting Hardware of 30W &
40W Optional |
We Assist in developing custom built resistors for all applications
