High Power Aluminium Resistors Type: HPAR

Resistors we manufacture comply to the RoHS directories & are UL certified. They are manufactured keeping their reliability & durability into account and are also designed & developed according to clients' specifications.

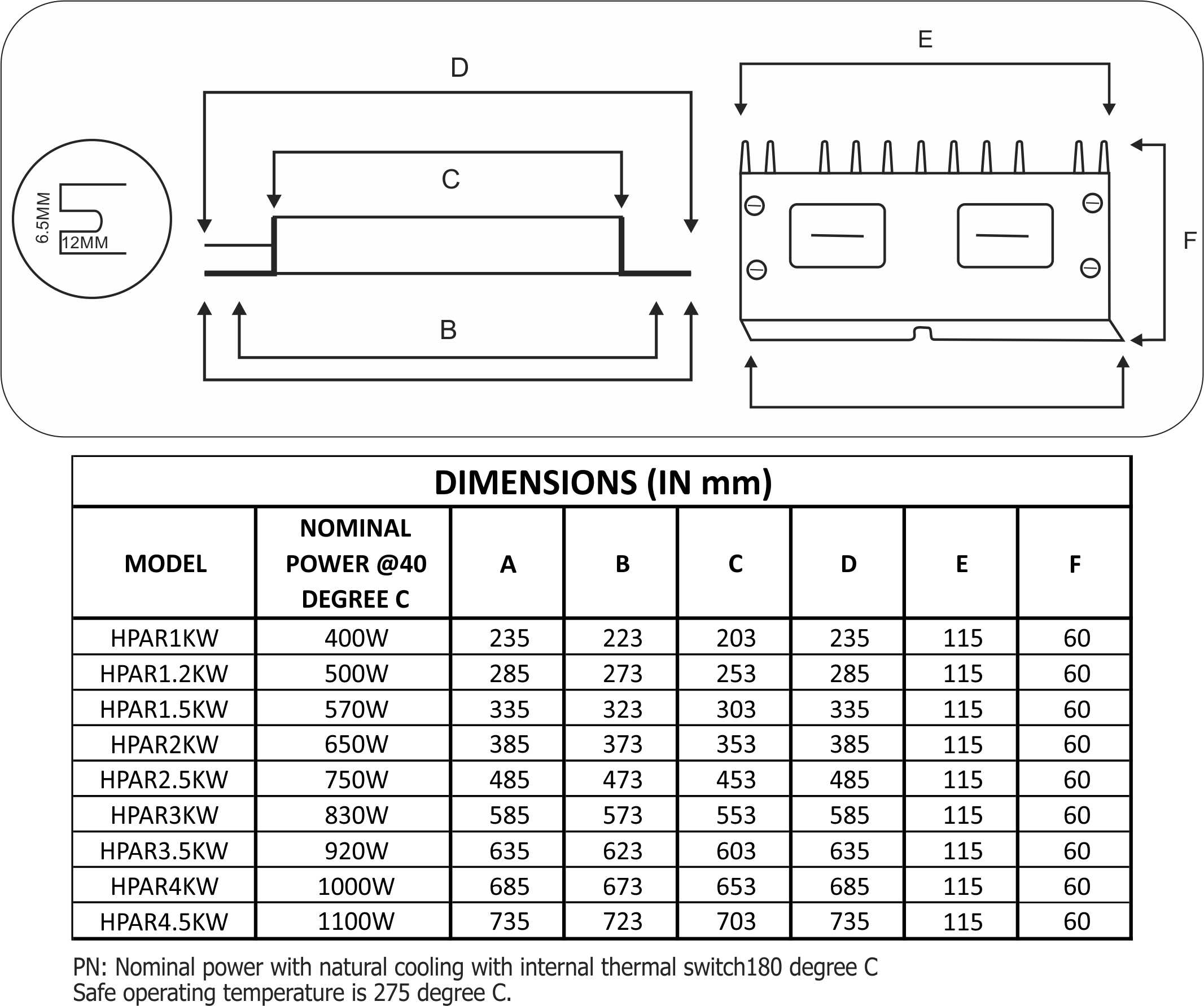

Aluminium Housed Chassis Mounted Wire Wound Resistors

» Send Business Enquiry

Features

Low Price Small Size.
High Power and Excellent load life stability
Excellent short time over load
Strongly resistant to moisture & solvent.
Self-extinguish material is used in encapsulation.
Non-inductive type available.
High-surge-resistant items are available.
Wire terminals available. Standard length 300mm longer length upto 1.25 mtrs. can also be supplied.
Models with thermal switch available.
Custom built resistors is our speciality.

ORDERING PROCESS

FOR EXAMPLE:-
ONICS
HPAR 1.5KW 100R K T W3 MM/YY
ONICS – BRAND NAME
HPAR1.5KW – MODEL NUMBER
100R = RESISTANCE VALUE,
K =TOLERANCE 10% , T = THERMAL SWITCH, W3= WIRE TERMINAL300MM LENGTH, MM/YY = MONTH/YEAR OF MANUFACTURING

Note: -
For 5% tolerance use J instead of K.
For 500mm wire terminal length use W5 instead of W3.
For clip terminal use C instead of W3 or W5.

Operating Temp.	-55°C - +275°C
Insulation Resistance	20M Ohms MIN
Dielectric Strength	AC 1500V, 3500V, 5000V for 1 min
Temp. Coefficient	50 ppm/°C, 100 ppm/°C, 260 ppm/°C
Short Time Over Load	10 X Wattage Rating, 10 sec
Moisture resistance	temp 40°C moisture 95% DC100v500h
Thermal Shock	Wattage Rating 30min. -25°C, 15min
Vibration	10c/c ~ 50 c/s ~ 10 c/s (1min) -2h each of paralleled and right angle.
Load Life	Wattage Rating 1.5 h On, 30min off, 1000h
Derate to zero	at 275°C
